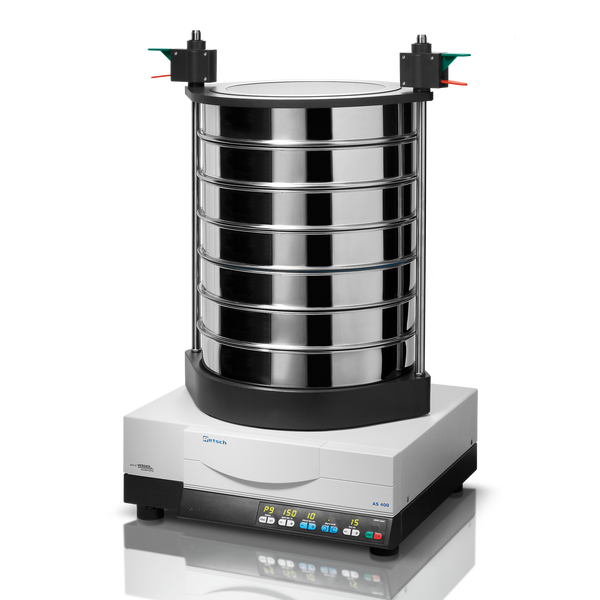

Horizontal Sieve Shaker AS 400 control

Horizontal Sieve Shaker AS 400 control for test sieves up to 400 mm Ø
(please order clamping device, test sieves and collecting pan separately)
30.022.0001
AS 400 control100–240 V, 50/60 Hzincl. test report acc. to EN 10204 2.2


Clamping devices AS 400 control

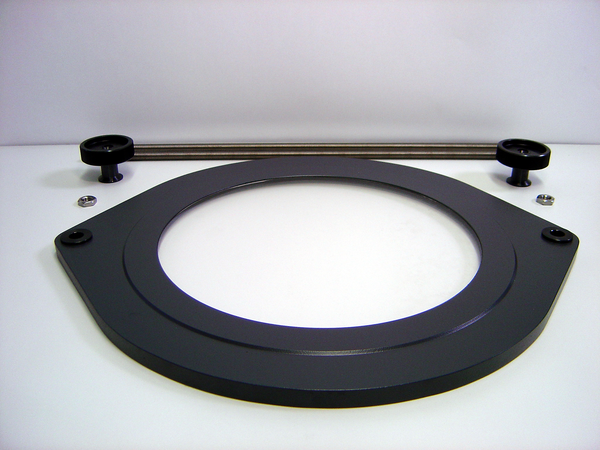

32.662.0010Clamping device “standard”, for test sieves 400 mm Ø

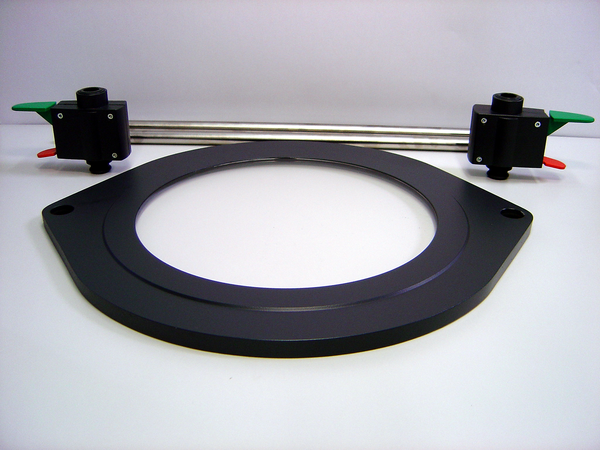

32.662.0011Clamping device “comfort”, for test sieves 400 mm Ø


Sieve stacks and accessories AS 400 control

60.166.000999Sieve stack consisting of 6 test sieves (ISO 3310-1), 400 mm Ø, 65 mm height
(500 µm, 1 mm, 2 mm, 5 mm, 10 mm, 20 mm) and collecting pan
60.167.000999Sieve stack consisting of 6 test sieves (ASTM E11), 400 mm Ø, 65 mm height
(35 mesh, 18 mesh, 10 mesh, 4 mesh, 3/8”, 3/4”) and collecting pan


Accessories AS 400 control

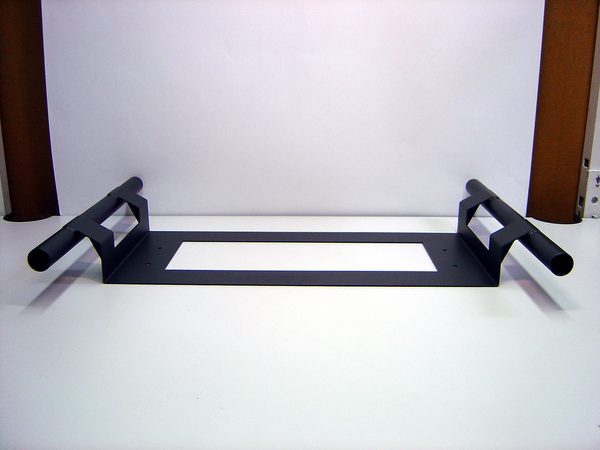

03.802.0006Transportation handles AS 400
99.200.0026IQ/OQ Documentation for AS 400 control


Accessories for clamping devices AS 200, AS 300, AS 400

Clamping lids

32.481.0022Clamping lid with large window of Perspex for test sieves 200/203 mm Ø
02.660.0012Clamping lid with large window of Perspex for test sieves 400 mm Ø


Clamping elements

32.142.0001Clamping nuts, (2 pieces) for clamping device “standard”
02.654.0004Quick-clamping elements, (2 pieces) for clamping device “comfort” AS 200/300/400
05.114.0080O-ring for quick-clamping element for AS 300 and AS 400, 1 piece


Clamping rods

32.248.0002Threaded rods, (2 pieces) for clamping device “standard”
32.248.0001Threaded rods, short, (2 pieces) for clamping of max. 5 test sieves for clamping device “standard”
03.741.0072Rods, smooth, (2 pieces) for clamping device “comfort” AS 300/400


Sieving Aids

32.365.0001Chain ring for test sieves 200 mm and 203 mm Ø to support horizontal sieving
32.050.0001Brushes, 3 pieces
32.902.0001Cubes of polyurethane, 12 x 12 x 12 mm, 10 pieces
32.902.0002Cubes of polyurethane, 20 x 20 x 20 mm, 10 pieces
32.354.0001Balls of rubber, 20 mm Ø, 5 pieces
32.354.0002Balls of agate, 10 mm Ø, 10 pieces
32.354.0004Balls of steatite, 6 mm Ø, 150 g


Accessories for test sieves (pans, rings, lids)



For test sieves 400 mm Ø

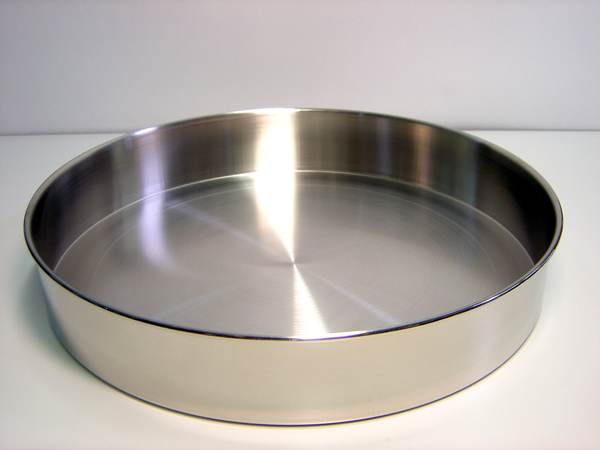

60.010.000400Collecting pan, неръждаема стомана, 400 mm Ø, height 65 mm
60.220.000400Intermediate pan, неръждаема стомана, 400 mm Ø, height 65 mm

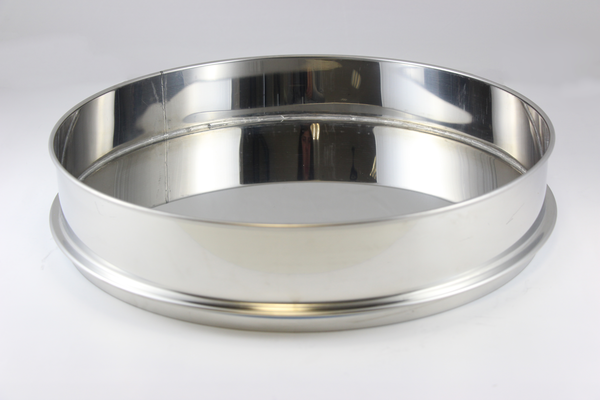

60.935.000400Intermediate ring, неръждаема стомана, 400 mm Ø, height 65 mm
60.107.000400Sieve lid, неръждаема стомана, 400 mm Ø


Test Sieves ø 400 mm - 65 mm height - ISO 3310/1 - stainless steel / wire gauze

# mm# mesh no.øheightstandard
60.166.000025
25 µm-400 mm65 mmISO 3310/1
60.166.000032
32 µm-400 mm65 mmISO 3310/1
60.166.000036
36 µm-400 mm65 mmISO 3310/1
60.166.000038
38 µm-400 mm65 mmISO 3310/1
60.166.000040
40 µm-400 mm65 mmISO 3310/1
60.166.000045
45 µm-400 mm65 mmISO 3310/1
60.166.000050
50 µm-400 mm65 mmISO 3310/1
60.166.000053
53 µm-400 mm65 mmISO 3310/1
60.166.000056
56 µm-400 mm65 mmISO 3310/1
60.166.000063
63 µm-400 mm65 mmISO 3310/1
60.166.000071
71 µm-400 mm65 mmISO 3310/1
60.166.000075
75 µm-400 mm65 mmISO 3310/1
60.166.000080
80 µm-400 mm65 mmISO 3310/1
60.166.000090
90 µm-400 mm65 mmISO 3310/1
60.166.000100
100 µm-400 mm65 mmISO 3310/1
60.166.000106
106 µm-400 mm65 mmISO 3310/1
60.166.000112
112 µm-400 mm65 mmISO 3310/1
60.166.000125
125 µm-400 mm65 mmISO 3310/1
60.166.000140
140 µm-400 mm65 mmISO 3310/1
60.166.000150
150 µm-400 mm65 mmISO 3310/1
60.166.000160
160 µm-400 mm65 mmISO 3310/1
60.166.000180
180 µm-400 mm65 mmISO 3310/1
60.166.000200
200 µm-400 mm65 mmISO 3310/1
60.166.000212
212 µm-400 mm65 mmISO 3310/1
60.166.000224
224 µm-400 mm65 mmISO 3310/1
60.166.000250
250 µm-400 mm65 mmISO 3310/1
60.166.000280
280 µm-400 mm65 mmISO 3310/1
60.166.000300
300 µm-400 mm65 mmISO 3310/1
60.166.000315
315 µm-400 mm65 mmISO 3310/1
60.166.000355
355 µm-400 mm65 mmISO 3310/1
60.166.000400
400 µm-400 mm65 mmISO 3310/1
60.166.000425
425 µm-400 mm65 mmISO 3310/1
60.166.000450
450 µm-400 mm65 mmISO 3310/1
60.166.000500
500 µm-400 mm65 mmISO 3310/1
60.166.000560
560 µm-400 mm65 mmISO 3310/1
60.166.000600
600 µm-400 mm65 mmISO 3310/1
60.166.000630
630 µm-400 mm65 mmISO 3310/1
60.166.000710
710 µm-400 mm65 mmISO 3310/1
60.166.000800
800 µm-400 mm65 mmISO 3310/1
60.166.000850
850 µm-400 mm65 mmISO 3310/1
60.166.000900
900 µm-400 mm65 mmISO 3310/1
60.166.001000
1.00 mm-400 mm65 mmISO 3310/1
60.166.001120
1.12 mm-400 mm65 mmISO 3310/1
60.166.001180
1.18 mm-400 mm65 mmISO 3310/1
60.166.001250
1.25 mm-400 mm65 mmISO 3310/1
60.166.001400
1.40 mm-400 mm65 mmISO 3310/1
60.166.001600
1.60 mm-400 mm65 mmISO 3310/1
60.166.001700
1.70 mm-400 mm65 mmISO 3310/1
60.166.001800
1.80 mm-400 mm65 mmISO 3310/1
60.166.002000
2.00 mm-400 mm65 mmISO 3310/1
60.166.002240
2.24 mm-400 mm65 mmISO 3310/1
60.166.002360
2.36 mm-400 mm65 mmISO 3310/1
60.166.002500
2.50 mm-400 mm65 mmISO 3310/1
60.166.002800
2.80 mm-400 mm65 mmISO 3310/1
60.166.003150
3.15 mm-400 mm65 mmISO 3310/1
60.166.003350
3.35 mm-400 mm65 mmISO 3310/1
60.166.003550
3.55 mm-400 mm65 mmISO 3310/1
60.166.004000
4.00 mm-400 mm65 mmISO 3310/1
60.166.004500
4.50 mm-400 mm65 mmISO 3310/1
60.166.004750
4.75 mm-400 mm65 mmISO 3310/1
60.166.005000
5.00 mm-400 mm65 mmISO 3310/1
60.166.005600
5.60 mm-400 mm65 mmISO 3310/1
60.166.006300
6.30 mm-400 mm65 mmISO 3310/1
60.166.006700
6.70 mm-400 mm65 mmISO 3310/1
60.166.007100
7.10 mm-400 mm65 mmISO 3310/1
60.166.008000
8.00 mm-400 mm65 mmISO 3310/1
60.166.009000
9.00 mm-400 mm65 mmISO 3310/1
60.166.009500
9.50 mm-400 mm65 mmISO 3310/1
60.166.010000
10.00 mm-400 mm65 mmISO 3310/1
60.166.011200
11.20 mm-400 mm65 mmISO 3310/1
60.166.012500
12.50 mm-400 mm65 mmISO 3310/1
60.166.013200
13.20 mm-400 mm65 mmISO 3310/1
60.166.014000
14.00 mm-400 mm65 mmISO 3310/1
60.166.016000
16.00 mm-400 mm65 mmISO 3310/1
60.166.018000
18.00 mm-400 mm65 mmISO 3310/1
60.166.019000
19.00 mm-400 mm65 mmISO 3310/1
60.166.020000
20.00 mm-400 mm65 mmISO 3310/1
60.166.022400
22.40 mm-400 mm65 mmISO 3310/1
60.166.025000
25.00 mm-400 mm65 mmISO 3310/1
60.166.026500
26.50 mm-400 mm65 mmISO 3310/1
60.166.028000
28.00 mm-400 mm65 mmISO 3310/1
60.166.031500
31.50 mm-400 mm65 mmISO 3310/1
60.166.035500
35.50 mm-400 mm65 mmISO 3310/1
60.166.037500
37.50 mm-400 mm65 mmISO 3310/1
60.166.040000
40.00 mm-400 mm65 mmISO 3310/1
60.166.045000
45.00 mm-400 mm65 mmISO 3310/1
60.166.050000
50.00 mm-400 mm65 mmISO 3310/1
60.166.053000
53.00 mm-400 mm65 mmISO 3310/1
60.166.056000
56.00 mm-400 mm65 mmISO 3310/1
60.166.063000
63.00 mm-400 mm65 mmISO 3310/1
60.166.071000
71.00 mm-400 mm65 mmISO 3310/1
60.166.075000
75.00 mm-400 mm65 mmISO 3310/1
60.166.080000
80.00 mm-400 mm65 mmISO 3310/1
60.166.090000
90.00 mm-400 mm65 mmISO 3310/1
60.166.100000
100.00 mm-400 mm65 mmISO 3310/1
60.166.106000
106.00 mm-400 mm65 mmISO 3310/1
60.166.112000
112.00 mm-400 mm65 mmISO 3310/1
60.166.125000
125.00 mm-400 mm65 mmISO 3310/1
