Ultra Centrifugal Mill ZM 300

Ultra Centrifugal Mill ZM 300

МОжете да поискате безплатна необвързваща оферта на тази страница.

Моля изберете продуктите, които искате да включите в запитването ви. Можете да избирате продукти от всички продуктови страници.

Листа с вашето запитване ще бъде видим в горния десен ъгъл на уеб страницата.

General Inquiry

Not sure which items you need or you prefer a general quote?

Send us a general inquiry

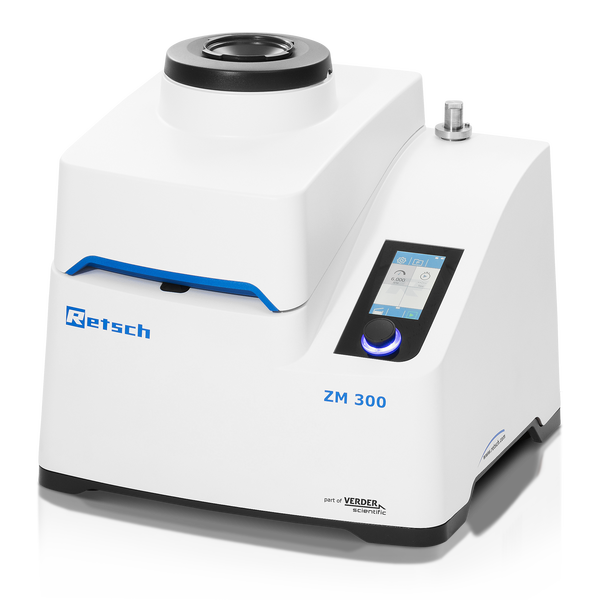

Ultra Centrifugal Mill ZM 300

Ultra Centrifugal Mill ZM 300 with 900 ml cassette
(please order push-fit rotor and ring sieve separately)
20.824.0001
ZM 300230 V, 50/60 Hz
20.824.0002
ZM 300110-120 V, 50/60 Hz
other electrical versions available for the same price


Accessories ZM 300 Standard

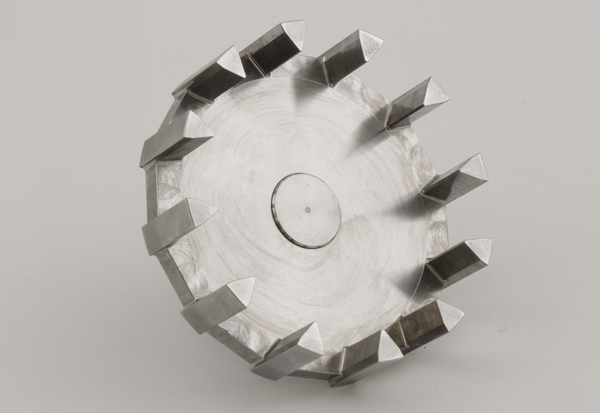

Push-fit rotors of stainless steel

Selection help
Selection help
Type of rotors:
  • 6-teeth rotor:
    Used for coarse, fibrous and bulky samples like hay, straw or feed pellets.

  • 12-teeth rotor:
    Used for a large variety of (medium-coarse) samples such as grain, plastic pellets or tablets.

  • 24-teeth rotor:
    Used for fine sample materials like sugar or chemicals.
Please note:

For special applications like pulverization of abrasive samples, heavy-metal-free grinding or homogenization of very small sample volumes further rotors are available – see the corresponding section of the order data.
02.608.0040

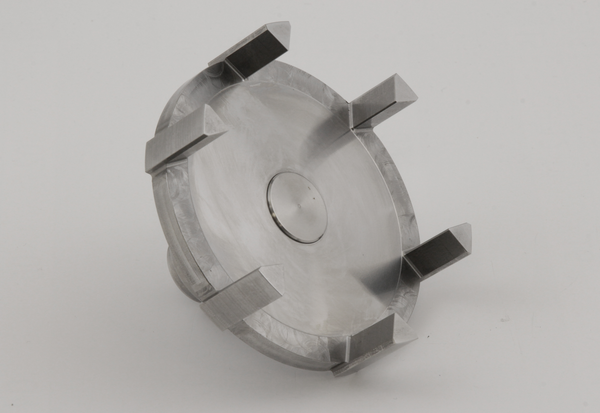

Push-fit rotor6 teeth
02.608.0041
Push-fit rotor12 teeth
02.608.0042

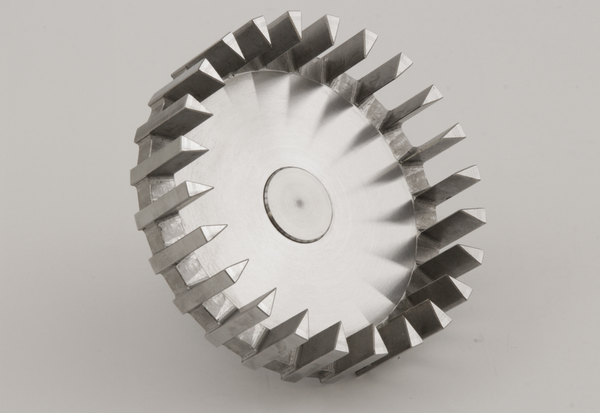

Push-fit rotor24 teeth


Ring sieves of stainless steel, with reinforced rim

03.647.0465
Trapezoid holes0.08 mm
03.647.0466
Trapezoid holes0.12 mm
03.647.0467
Trapezoid holes0.20 mm
03.647.0468
Trapezoid holes0.25 mm
03.647.0469
Trapezoid holes0.35 mm
03.647.0470
Trapezoid holes0.50 mm
03.647.0471
Trapezoid holes0.75 mm
03.647.0472
Trapezoid holes1.00 mm
03.647.0473
Trapezoid holes1.50 mm
03.647.0474
Trapezoid holes2.00 mm
03.647.0475
Round holes3.00 mm
03.647.0476
Round holes4.00 mm
03.647.0477
Round holes5.00 mm
03.647.0478
Round holes6.00 mm


Distance sieves of stainless steel,
recommended for temperature-sensitive and fatty materials

03.647.0441
Trapezoid holes0.08 mm
03.647.0442
Trapezoid holes0.12 mm
03.647.0443
Trapezoid holes0.20 mm
03.647.0444
Trapezoid holes0.25 mm
03.647.0445
Trapezoid holes0.35 mm
03.647.0446
Trapezoid holes0.50 mm
03.647.0447
Trapezoid holes0.75 mm
03.647.0448
Trapezoid holes1.00 mm
03.647.0449
Trapezoid holes1.50 mm
03.647.0450
Trapezoid holes2.00 mm
03.647.0451
Round holes3.00 mm
03.647.0452
Round holes4.00 mm
03.647.0453
Round holes5.00 mm
03.647.0454
Round holes6.0 mm
03.647.0455
Square holes10.00 mmfor pre-grinding


Accessories ZM 300 for abrasive products

Recommended use
Recommended use
Always use grinding tools with wear-resistant coating to pulverize abrasive samples like computer waste or some types of chemicals.

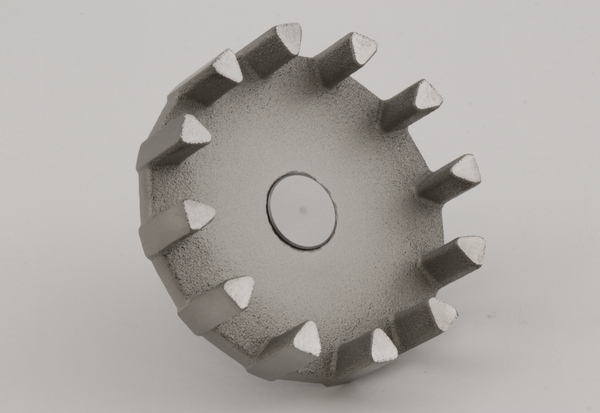

Push-fit rotors of stainless steel, with wear resistant coating

02.608.0043

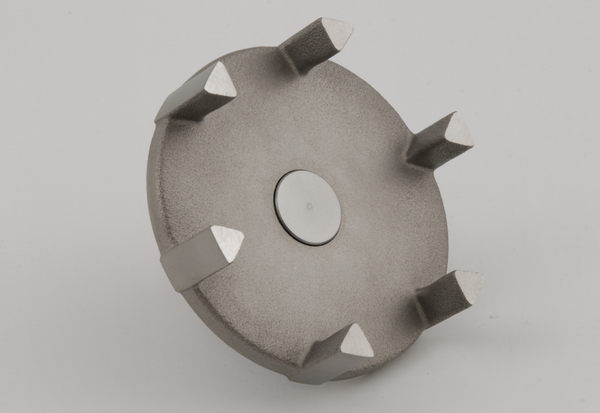

Push-fit rotor6 teeth
02.608.0044
Push-fit rotor12 teeth
02.608.0045

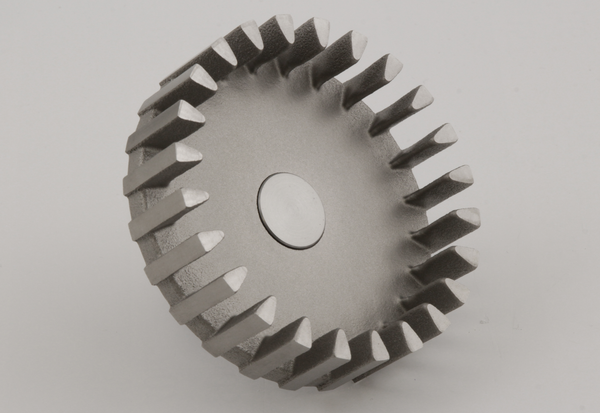

Push-fit rotor24 teeth


Ring sieves of stainless steel, with reinforced rim, with wear resistant coating

03.647.0456
Trapezoid holes0.20 mm
03.647.0457
Trapezoid holes0.25 mm
03.647.0458
Trapezoid holes0.35 mm
03.647.0459
Trapezoid holes0.50 mm
03.647.0460
Trapezoid holes0.75 mm
03.647.0461
Trapezoid holes1.00 mm
03.647.0462
Trapezoid holes1.50 mm
03.647.0463
Trapezoid holes2.00 mm
03.647.0464
Round holes3.00 mm


Accessories ZM 300 for grinding without heavy-metal contamination

Recommended use
Recommended use
For heavy-metal-free size reduction of non-abrasive samples grinding tools made of pure titanium are available. These ensure that the sample is not contaminated by traces of heavy metals. For this application rotor, sieve and cassette should be made of titanium.


Push-fit rotor and cassette

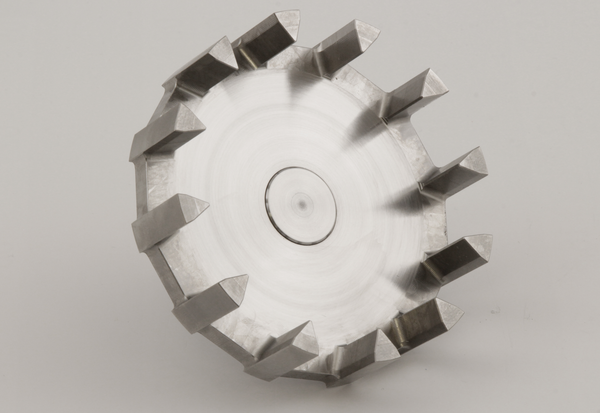

02.608.0047Push-fit rotor, 12 teeth of pure titanium
22.355.0012Cassette 900 ml with coating of titanium-niobium, complete (pan and lid with gasket)


Ring sieves of pure titanium, with reinforced rim

Selection help
Selection help
For heavy-metal-free size reduction of non-abrasive samples grinding tools made of pure titanium are available.

Types of ring sieves:

  • Sieves with reinforced rim:
    Used for pulverizing hard sample materials which put a high strain on the sieve. The reinforced rim serves to stabilize the sieves.

  • Distance sieves:
    Ideal for grinding samples which contain fat, like some grain types or oil seeds. The sample releases less fat which means it doesn’t clump and the sieve doesn’t get blocked.

    Distande sieves leave a gap between rotor and sieve which substantially reduces the shearing effect. Consequently, there is less heat build-up which makes these sieves suitable for processing heat-sensitive sample materials.

    Distance sieves may also be used for cryogenic grinding.
03.647.0479Trapezoid holes, 0.08 mm
03.647.0480
Trapezoid holes0.12 mm
03.647.0481
Trapezoid holes0.20 mm
03.647.0482
Trapezoid holes0.25 mm
03.647.0483
Trapezoid holes0.35 mm
03.647.0484
Trapezoid holes0.50 mm
03.647.0485
Trapezoid holes0.75 mm
03.647.0486
Trapezoid holes1.00 mm
03.647.0487
Trapezoid holes1.50 mm
03.647.0488
Round holes2.00 mm


Distance sieves of pure titanium

03.647.0493
Trapezoid holes0.08 mm
03.647.0550
Trapezoid holes0.12 mm
03.647.0551
Trapezoid holes0.20 mm
03.647.0552
Trapezoid holes0.25 mm
03.647.0553
Trapezoid holes0.35 mm
03.647.0489
Trapezoid holes0.50 mm
03.647.0554
Trapezoid holes0.75 mm
03.647.0490
Trapezoid holes1.00 mm
03.647.0555
Trapezoid holes1.50 mm
03.647.0556
Trapezoid holes2.00 mm
03.647.0557
Round holes3.00 mm
03.647.0561
Round holes4.00 mm
03.647.0558
Round holes5.00 mm
03.647.0559
Round holes6.0 mm
03.647.0560
Square holes10.00 mmfor pre-grinding


Cyclones ZM 300

Cyclone incl. cassette pan with outlet and support

Recommended use
Recommended use
The use of the cyclone is recommended for processing sample volumes >300 ml as the generated air stream carries the sample from the cassette with outlet into a sample bottle or collecting vessel with a max. volume of 5 l.

Moreover, the sample is cooled which is particularly beneficial for heat-sensitive materials. The use of the vacuum cleaner has a greater cooling effect than the filter bag.

The cyclone is also suitable for cooling small sample volumes.
22.935.0030Cyclone with filter bag, with sample bottles 0.25 and 0.5 litres
22.935.0028Cyclone with filter bag, with collecting receptacle 3 litres
22.935.0027Cyclone with filter bag, with collecting receptacle 5 litres
22.935.0029Cyclone with connection for vacuum cleaner, with sample bottles 0.25 and 0.5 litres
22.935.0026Cyclone with connection for vacuum cleaner, with collecting receptacle 3 litres
22.935.0025Cyclone with connection for vacuum cleaner, with collecting receptacle 5 litres
22.748.0005Industrial vacuum cleaner for mills, 230 V, 50/60 Hz
(other electrical versions and spare filter bags available upon request)

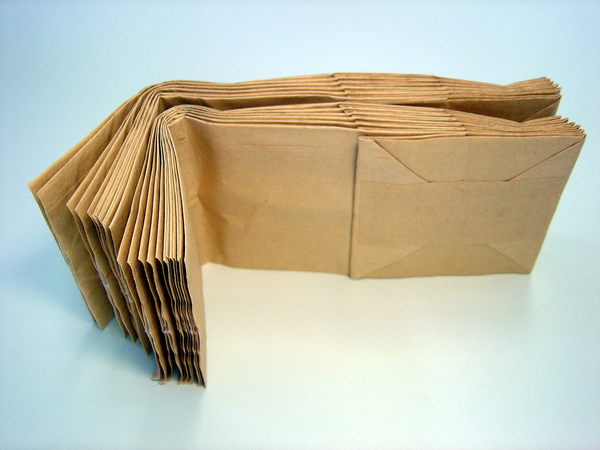

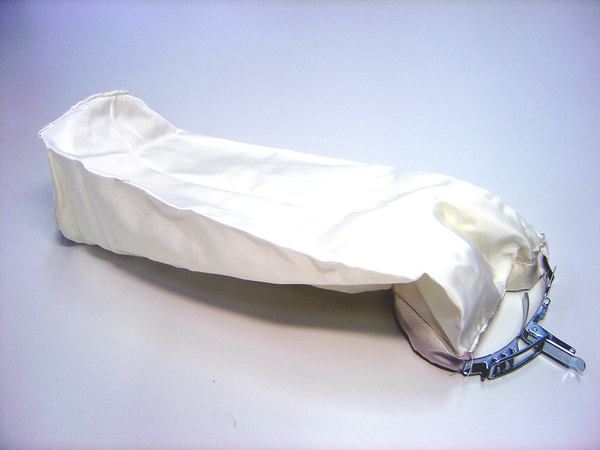

Paper filter bags ZM 300

22.261.0005Paper filter bags (12 pieces) incl. cassette pan with outlet and filter holder


Accessories for cold grinding ZM 300

22.354.0007Cryo kit for embrittlement of samples in liquid nitrogen or dry ice snow
(incl. 2 insulated containers (1 and 4 liter), 1 spoon spatula, 1 pair of safety glasses)


Additional items ZM 300

22.355.0018Cassette complete, stainless steel, incl. pan 900 ml, lid with gasket
22.355.0021Cassette complete, stainless steel, incl. pan 1200 ml, lid with gasket
22.355.0020Cassette complete, stainless steel, incl. pan with outlet, lid with gasket
22.355.0012Cassette 900 ml with coating of titanium-niobium, complete (pan and lid with gasket)
03.010.0058Cassette pan 900 ml, stainless steel
03.010.0059Cassette pan 1200 ml, stainless steel
02.010.0060Cassette pan with outlet, stainless steel
03.010.0062Cassette pan 900 ml, titanium-niobium coating
22.355.0015Cassette lid, stainless steel, with gasket
22.355.0011Cassette lid, titanium-niobium coating, with gasket
03.111.0400Set of gaskets for cassette lid, 1 piece
02.011.0078Collecting receptacle for cyclone, 5 litres, stainless steel
02.011.0031Collecting receptacle for cyclone, 3 litres, stainless steel
02.107.0634Lid for collecting receptacle, 5 litres
02.107.0493Lid for collecting receptacle, 3 litres

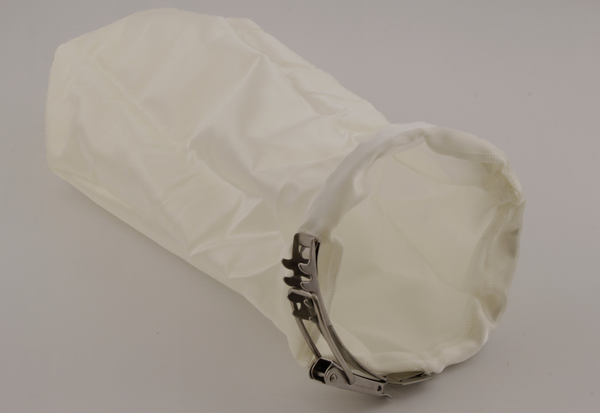

02.186.0010Filter bag of nylon, for cyclone
22.524.0001Paper filter bags, 12 pieces
01.706.0318Labyrinth disc
03.114.0092Gasket for labyrinth disc, 1 piece

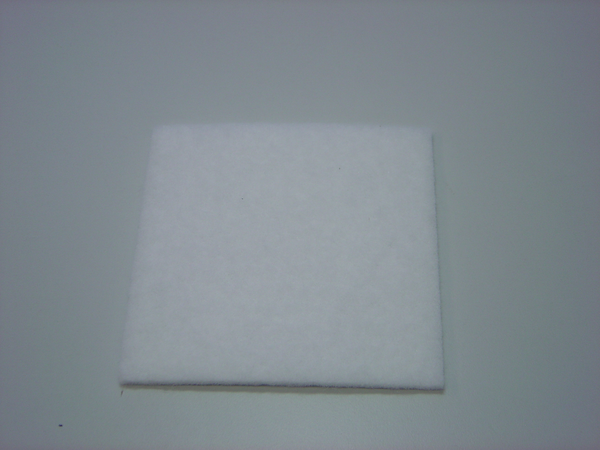

22.524.0006Protective grating with dust filter for fan
05.742.0017Dust filter for fan, 10 pieces
99.200.0033IQ/OQ Documentation for ZM 300


Vibratory Feeder DR 100 for ZM 300

DR 100 drive unit (please order feeding kit separately)
70.938.0001
DR 100 drive unit220–240 V, 50 Hz
70.938.0002
DR 100 drive unit110–120 V, 60 Hz
72.020.0018Feeding kit DR 100-75/40 for ZM 300,
incl. push-fit feed chute 75/40 mm, length 250 mm, holder for push-fit feed chute, hopper 3.5 litres and fixture for hopper, stand with data cable
72.020.0024Feeding kit DR 100-V-shape for ZM 300,
incl. push-fit feed chute V-shape, length 250 mm, holder for push-fit feed chute, hopper 2.8 litres and fixture for hopper, stand with data cable


Push-fit feed chute DR 100 for ZM 300

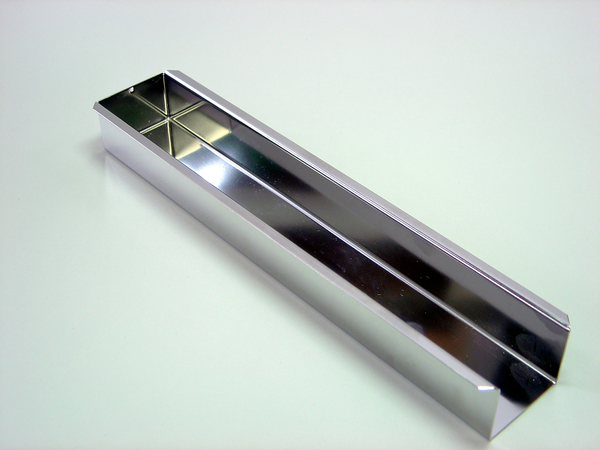

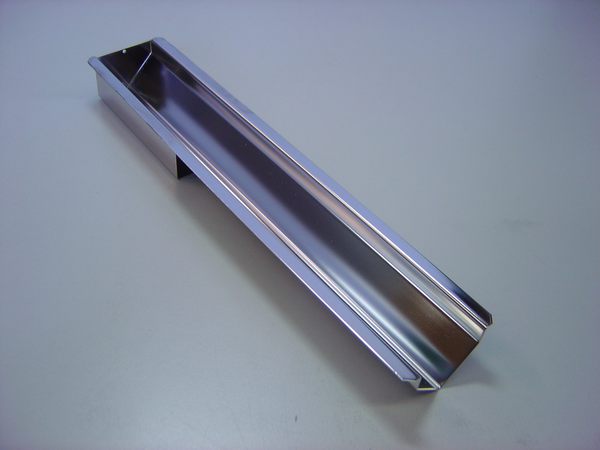

03.729.0054Push-fit feed chute, неръждаема стомана, width 40 mm, length 250 mm

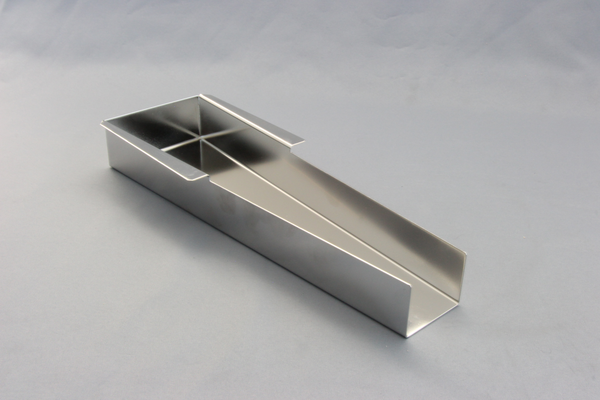

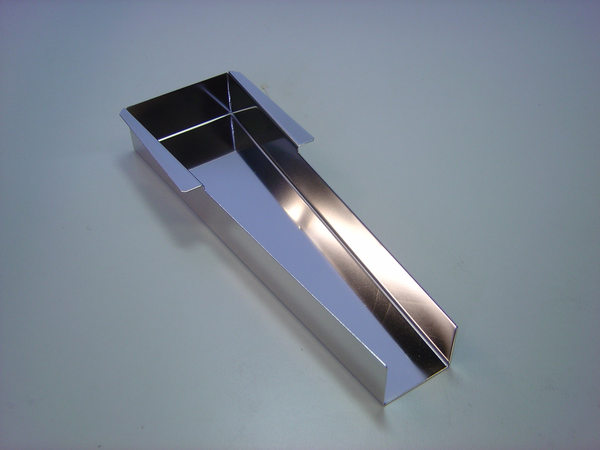

03.729.0056Push-fit feed chute, неръждаема стомана, width 75/40 mm, length 250 mm
03.729.0055Push-fit feed chute, неръждаема стомана, V-shape, width 40 mm, length 250 mm
