Роторна мелница SR 300

Роторна мелница SR 300

МОжете да поискате безплатна необвързваща оферта на тази страница.

Моля изберете продуктите, които искате да включите в запитването ви. Можете да избирате продукти от всички продуктови страници.

Листа с вашето запитване ще бъде видим в горния десен ъгъл на уеб страницата.

General Inquiry

Not sure which items you need or you prefer a general quote?

Send us a general inquiry

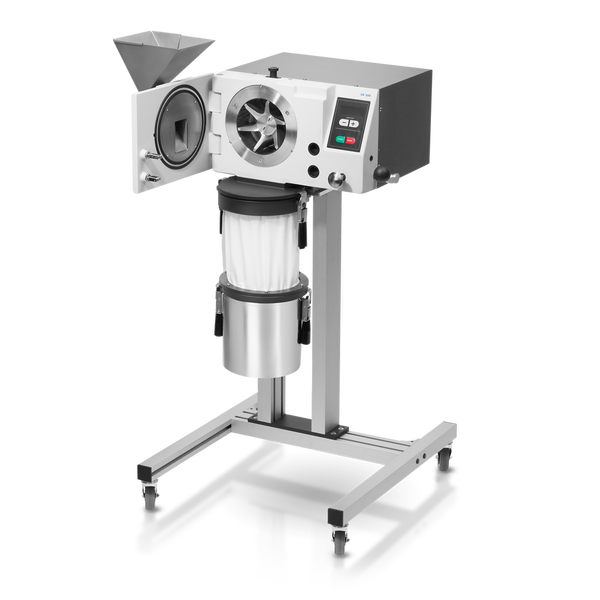

Rotor Beater Mill SR 300

Rotor Beater Mill SR 300 with rotor, 240 mm filter hose and collecting receptacle (please order retaining frame, sieves and optional base frame separately)
20.752.0001
SR 300200–240 V, 50/60 Hz, incl. standard rotor
20.752.0002
SR 300200–240 V, 50/60 Hz, incl. distance rotor
22.824.0007Base frame with wheels


Retaining frames and ring sieves for SR 300

Selection help
Selection help
Available retaining frames:

  • Retaining frame 360°:
    For soft, medium-hard or fibrous sample materials we recommend the use of the retaining frame 360° as shearing is the most suitable size reduction principle.

  • Retaining frame 180°:
    Medium-hard, hard (up to Mohs hardness 4), and brittle samples are best pulverized by using the retaining frame 180° with grinding insert for sieves 180° as impact and shearing are the most suitable size reduction principles.

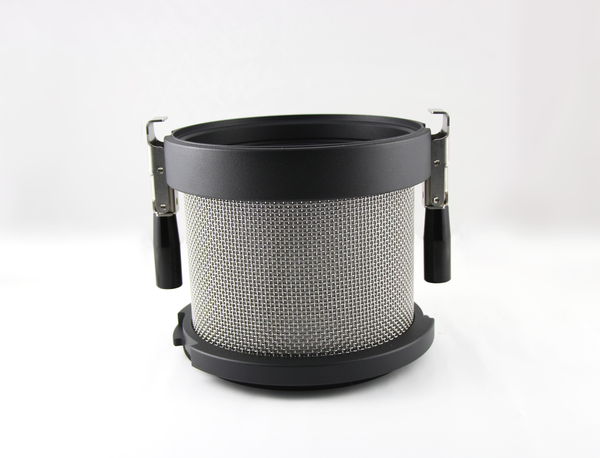

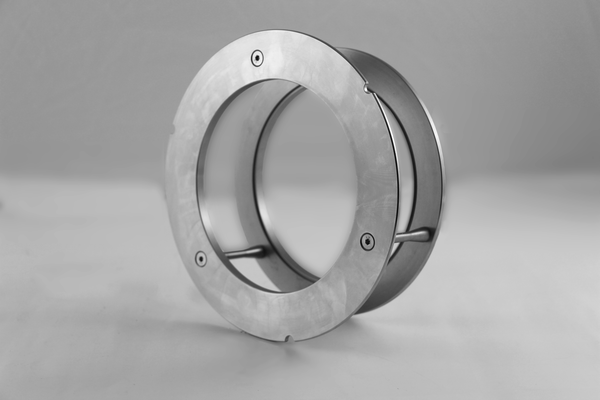

Retaining frame 360° of stainless steel

22.642.0004Retaining frame 360°

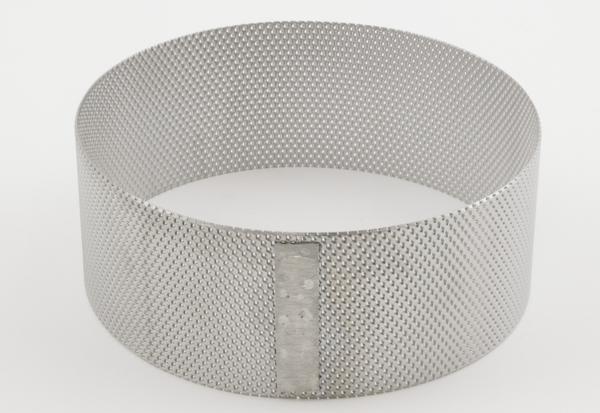

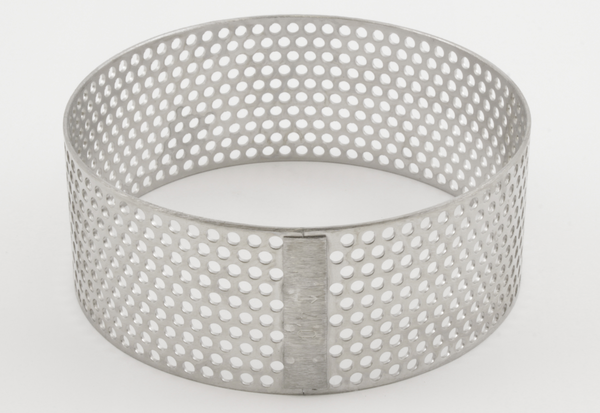

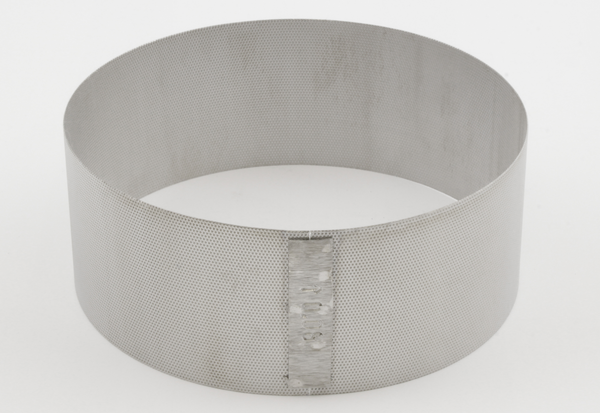

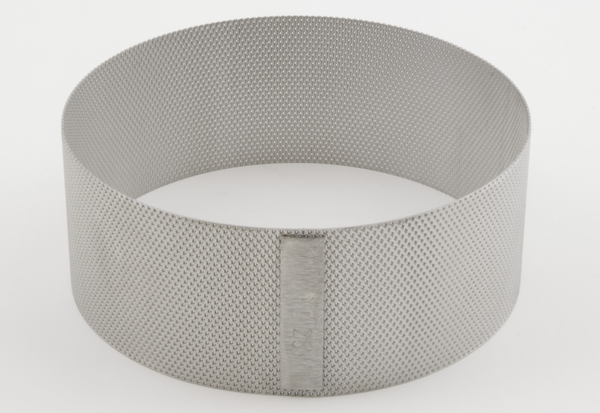

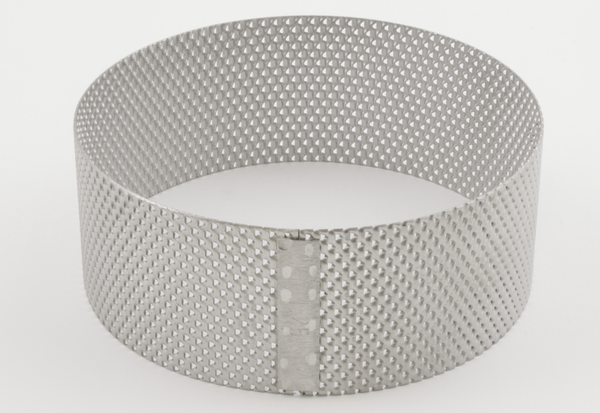

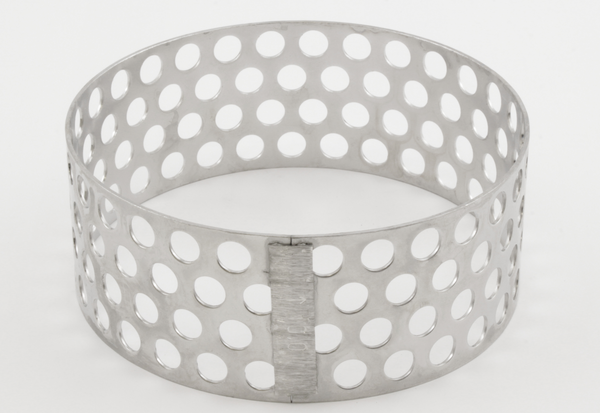

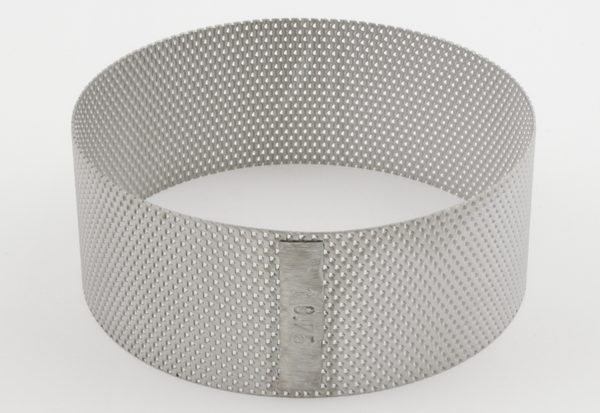

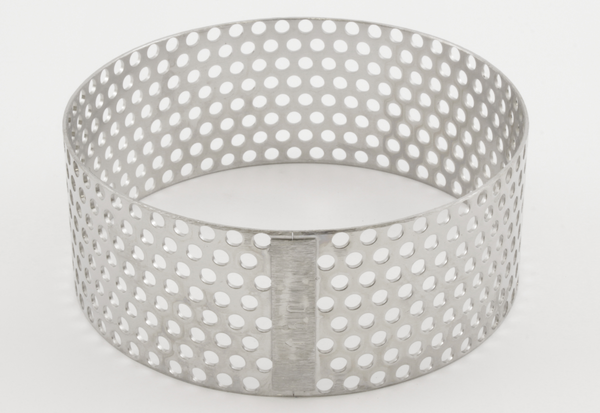

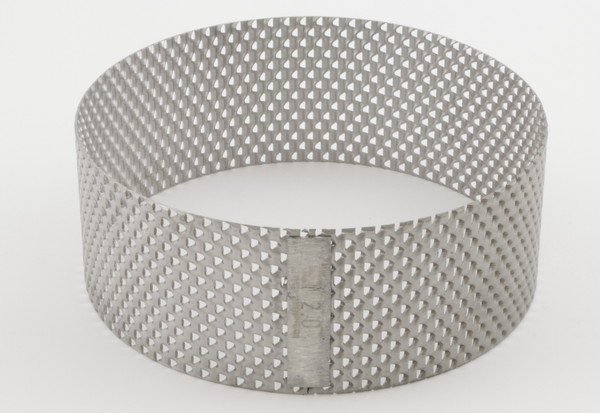

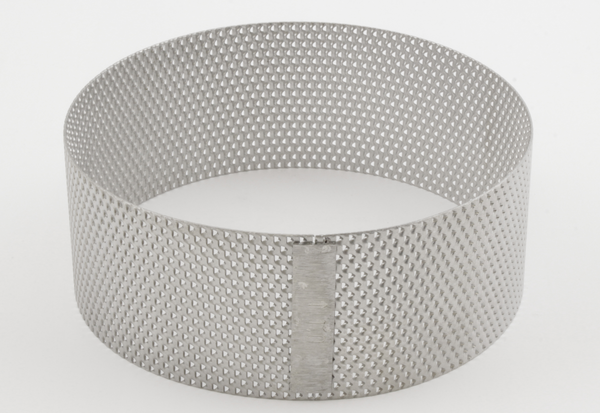

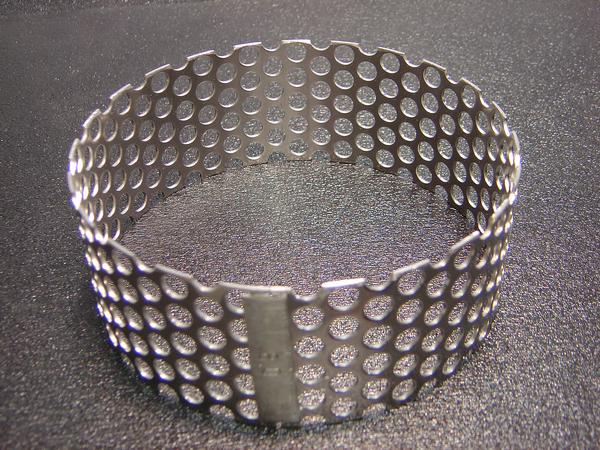

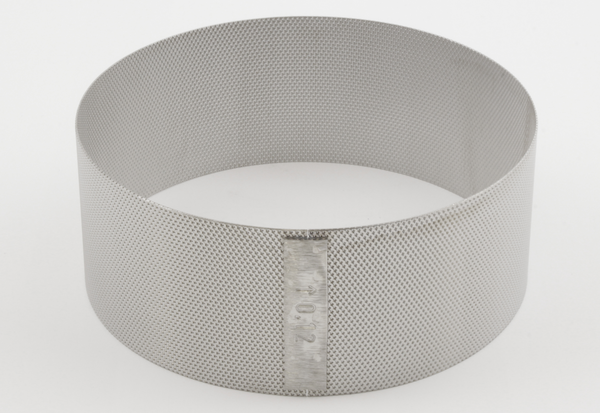

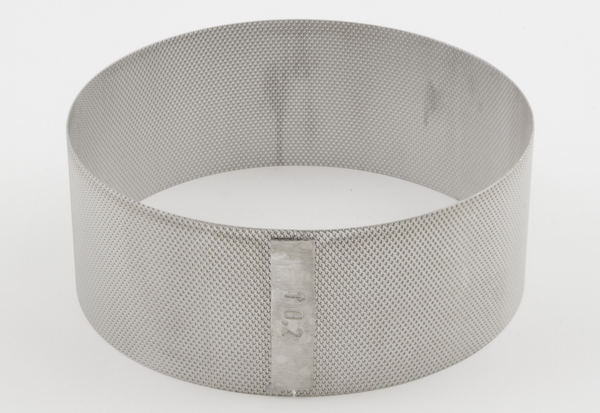

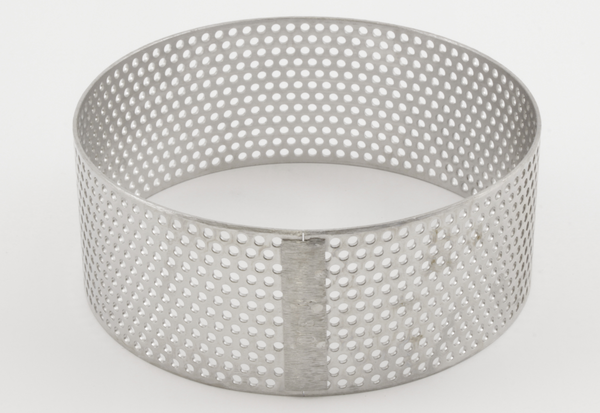

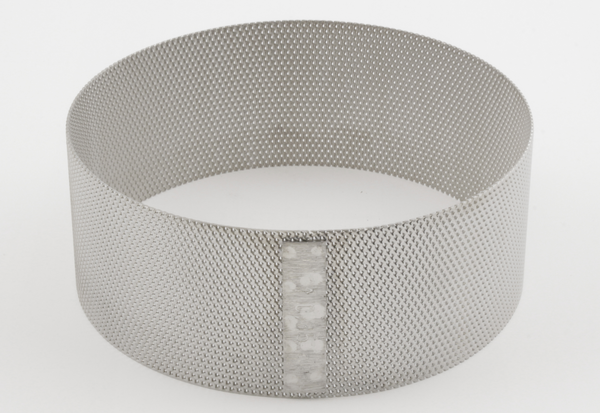

Ring sieves 360° of stainless steel

02.407.0057
Trapezoid holes0.08 mm
02.407.0026
Trapezoid holes0.12 mm
02.407.0028
Trapezoid holes0.20 mm
02.407.0029
Trapezoid holes0.25 mm
02.407.0120
Trapezoid holes0.35 mm
02.407.0030
Trapezoid holes0.50 mm
02.407.0031
Trapezoid holes0.75 mm
02.407.0032
Trapezoid holes1.00 mm
02.407.0058
Trapezoid holes1.25 mm
02.407.0033
Trapezoid holes1.50 mm
02.407.0034
Trapezoid holes2.00 mm
02.407.0035
Round holes3.00 mm
02.407.0036
Round holes4.00 mm
02.407.0037
Round holes5.00 mm
02.407.0043
Round holes6.00 mm
02.407.0039
Round holes8.00 mmfor pre-grinding
02.407.0040
Round holes10.00 mm

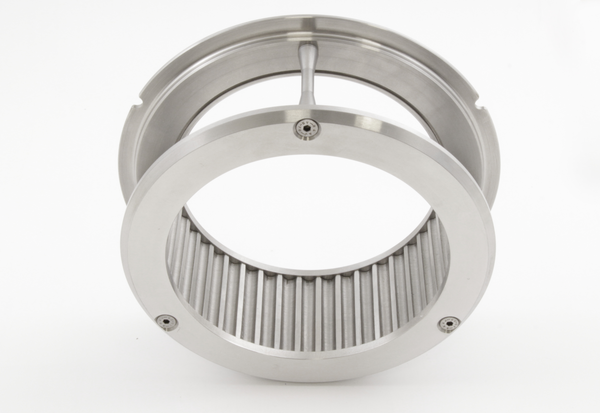

Retaining frame 180° of stainless steel

02.143.0066Retaining frame with grinding insert for sieves 180°

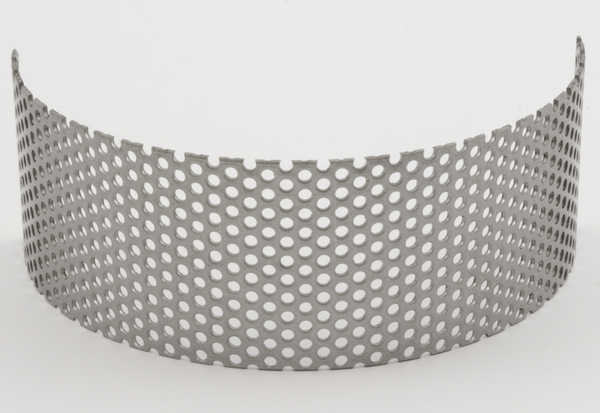

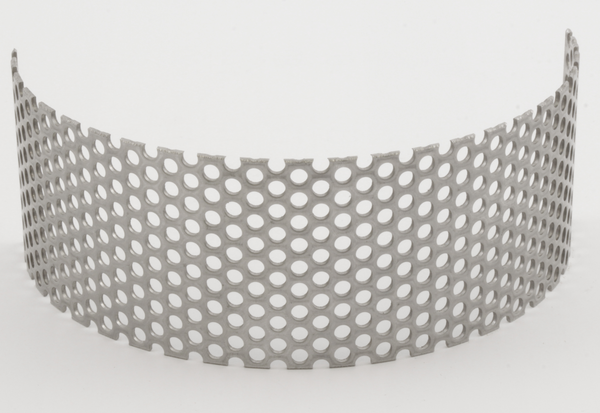

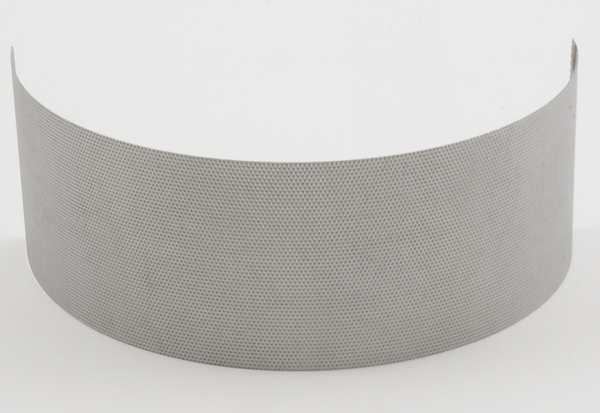

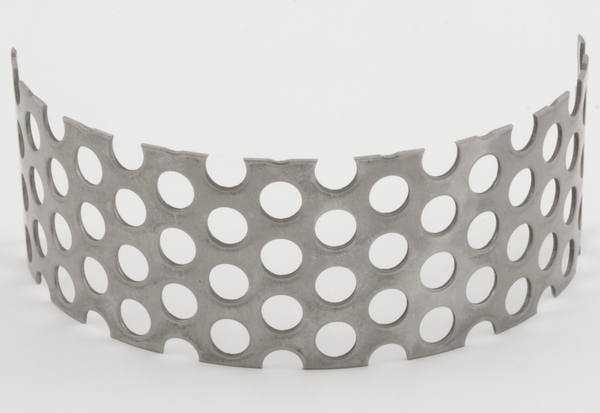

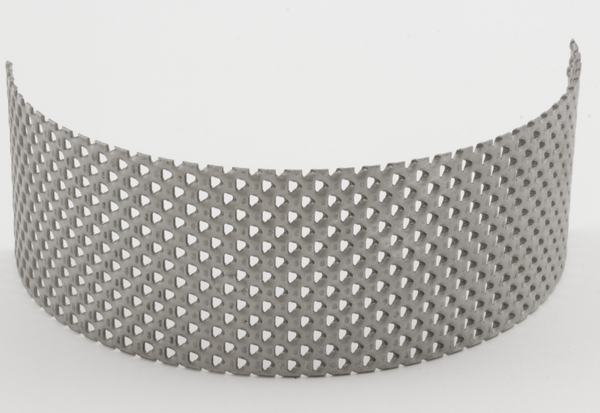

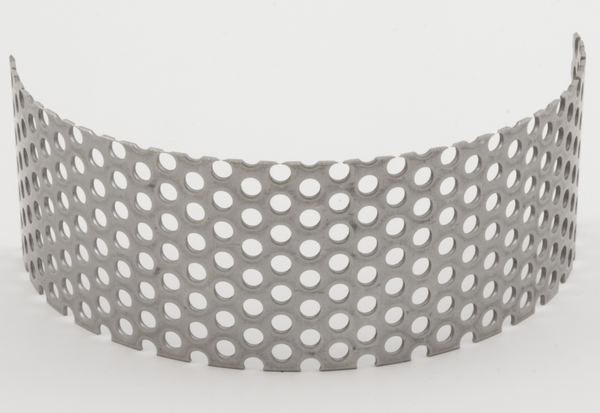

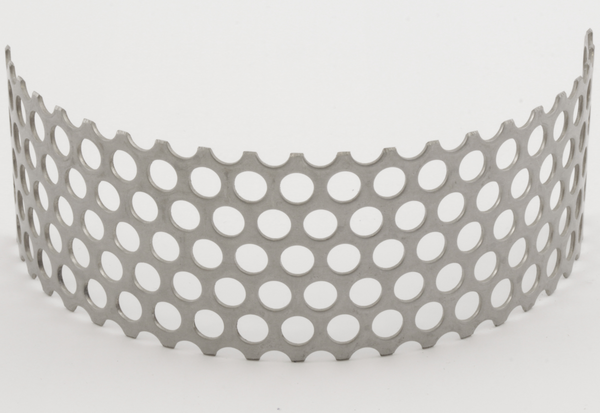

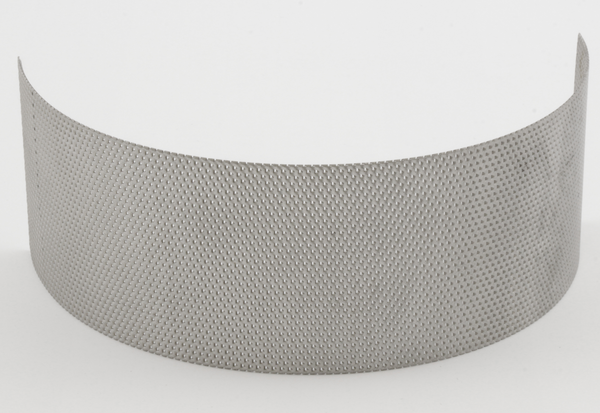

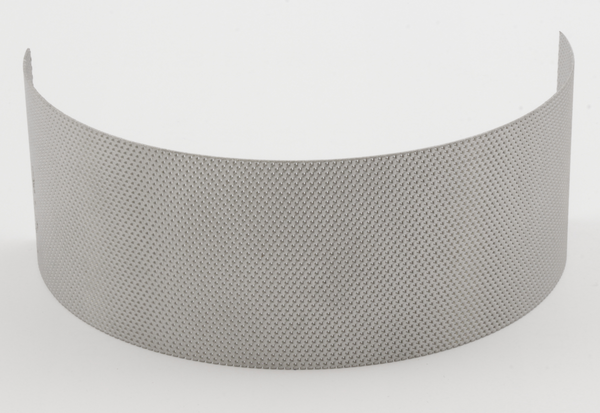

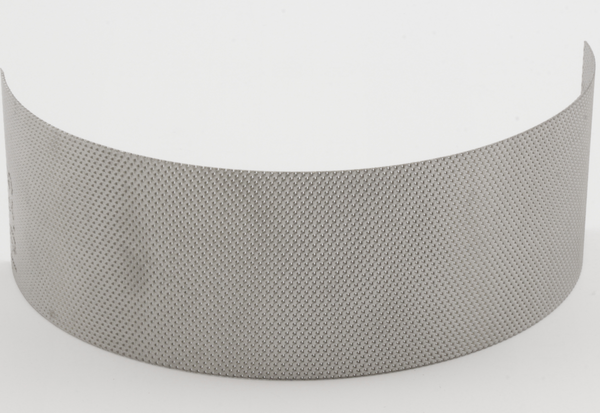

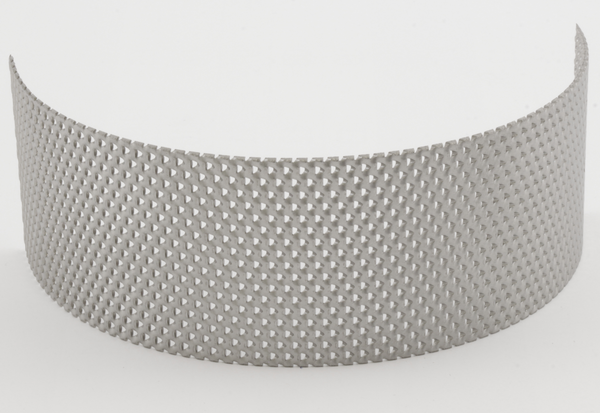

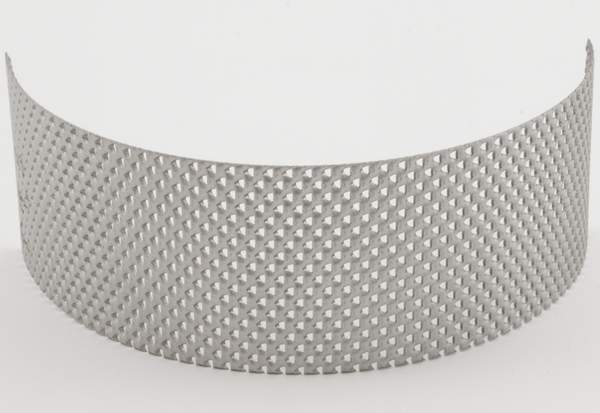

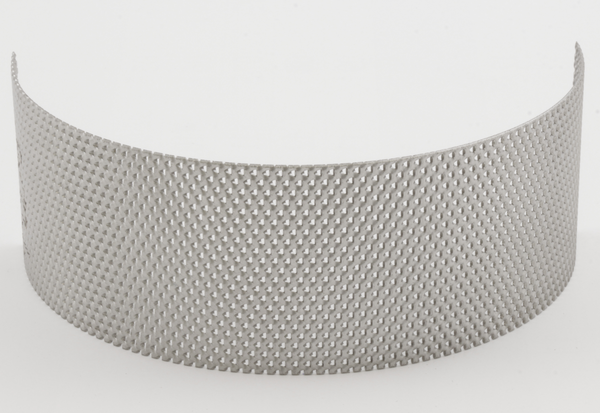

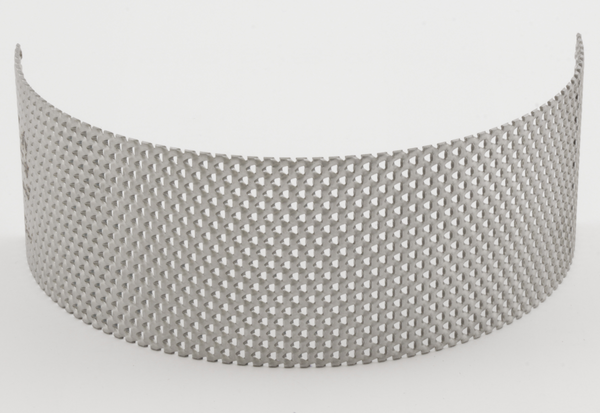

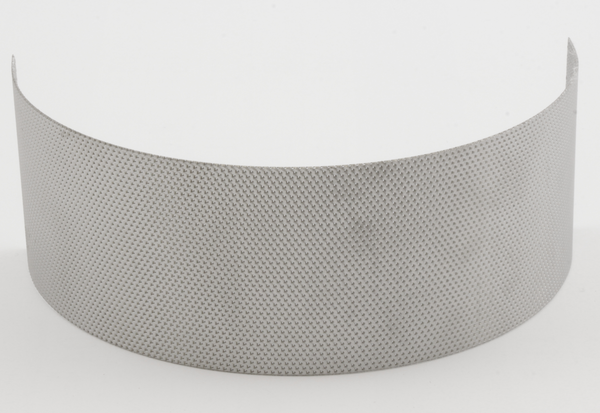

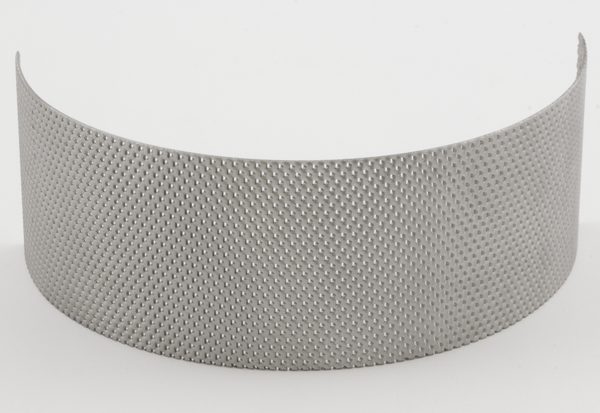

Sieves 180° of stainless steel

03.647.0081
Trapezoid holes0.08 mm
03.647.0039
Trapezoid holes0.12 mm
03.647.0040
Trapezoid holes0.20 mm
03.647.0041
Trapezoid holes0.25 mm
03.647.0395
Trapezoid holes0.35 mm
03.647.0042
Trapezoid holes0.50 mm
03.647.0043
Trapezoid holes0.75 mm
03.647.0044
Trapezoid holes1.00 mm
03.647.0045
Trapezoid holes1.25 mm
03.647.0046
Trapezoid holes1.50 mm
03.647.0047
Trapezoid holes2.00 mm
03.647.0048
Round holes3.00 mm
03.647.0049
Round holes4.00 mm
03.647.0050
Round holes5.00 mm
03.647.0051
Round holes6.00 mm
03.647.0052
Round holes8.00 mm
03.647.0053
Round holes10.00 mmfor pre-grinding


Accessories SR 300



Cyclone-suction-combination for SR 300

Recommended use
Recommended use
The cyclone-suction combination is recommended for the homogenization of low density materials as the air jet which is generated improves discharge of the sample from the grinding chamber.

Moreover, the sample is cooled which is particularly beneficial for heat-sensitive materials.
22.935.0020Cyclone unit incl. 5 litres collection receptacle (to be used with industrial vacuum cleaner)
22.935.0021Cyclone unit incl. 26 litres collection receptacle (to be used with industrial vacuum cleaner)
22.748.0005Industrial vacuum cleaner for mills, 230 V, 50/60 Hz (other electrical versions and spare filter bags available upon request)


Additional items SR 300

Selection help
Selection help

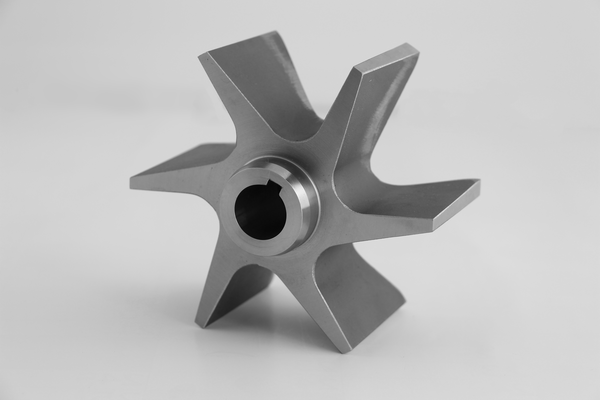

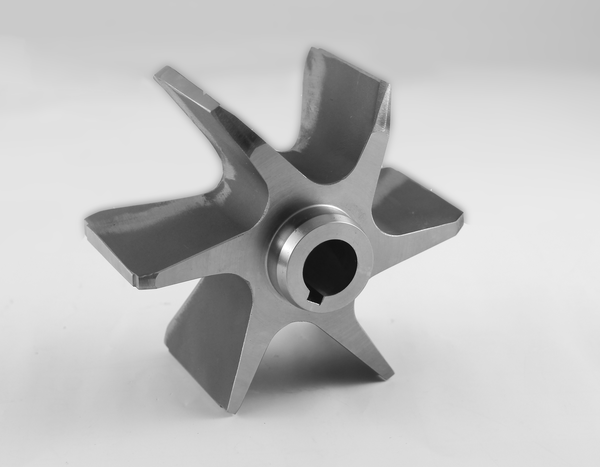

Rotor Types:
    • Standard rotor:
      Due to the small grinding gap it generates particularly strong shearing forces which is beneficial for pulverizing, e. g. fibrous materials.

    • Distance rotor:
      For heat-sensitive, slightly fatty samplesr. The larger grinding gap ensures reduction of frictional heat, thus preventing blocking of the sieves or the rotor.
22.717.0007Distance rotor of stainless steel
22.717.0006Standard rotor of stainless steel

03.010.0052Sieve cassette, stainless steel
22.187.0008Ring-type filter for collecting receptacle 5 litres

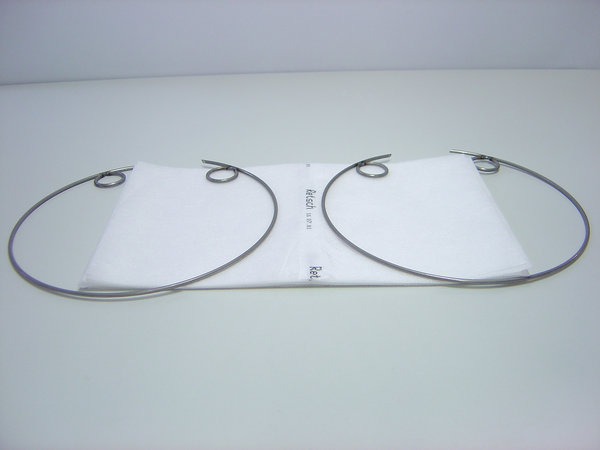

22.748.0001Dust filter clamping rings for ring-type filter, incl. 5 dust filters
05.742.0008Dust filters for ring-type filter, 25 pieces

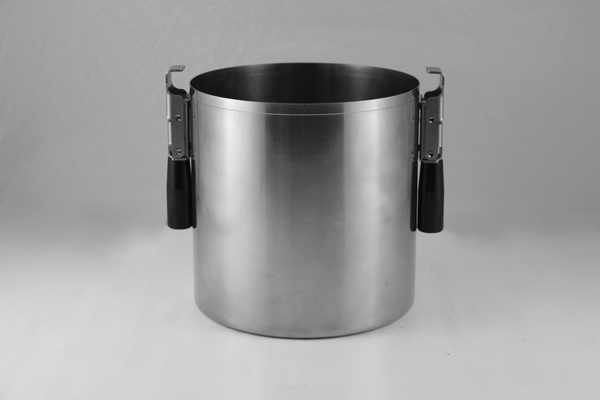

02.011.0038Collecting receptacle, 5 litres, stainless steel

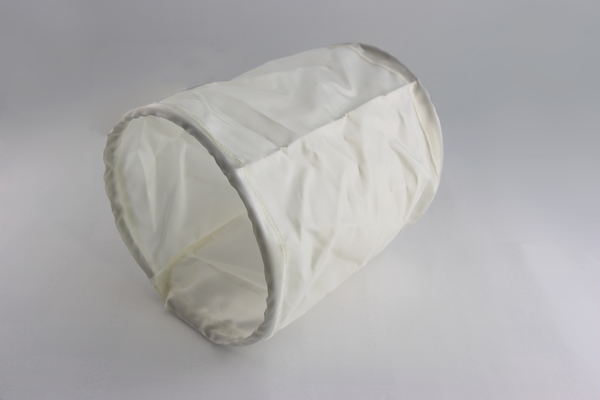

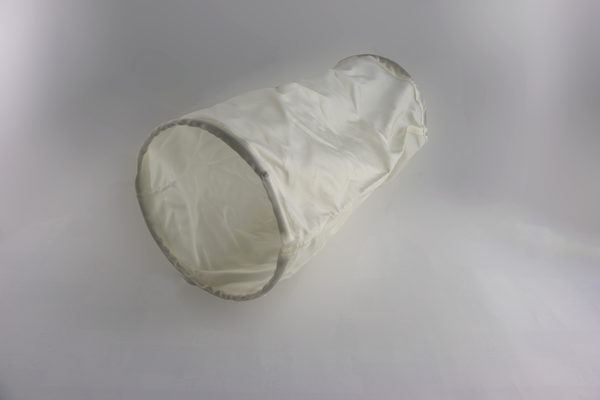

02.187.0020Filter hose for collecting receptacle 5 litres, length 240 mm, incl. “comfort” flange
02.186.0037Spare filter hose for 02.187.0020
22.003.0015Collecting receptacle, 26 litres, plastic, incl. filter hose and “comfort” flange
02.186.0042Spare filter hose for 22.003.0015
99.200.0024IQ/OQ Documentation for SR 300

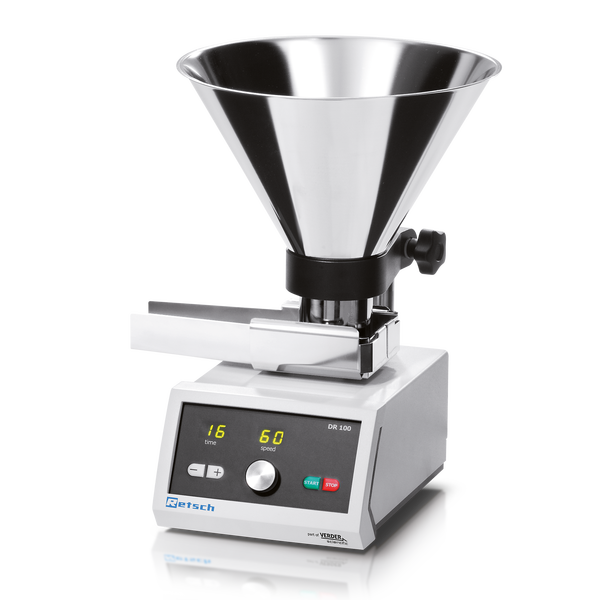

Vibratory Feeder DR 100 for SR 300

DR 100 drive unit (please order feeding kit separately)
70.938.0001
DR 100 drive unit220–240 V, 50 Hz
70.938.0003
DR 100 drive unit220–240 V, 60 Hz
70.938.0010
DR 100 drive unit200 V, 50 Hz
70.938.0006
DR 100 drive unit200 V, 60 Hz
72.020.0019Feeding kit DR 100/3.5 litres for SR 300/SK 300,
incl. push-fit feed chute 75 mm, holder for push-fit feed chute, hopper 3.5 litres and holder for hopper and fixture
72.020.0020Feeding kit DR 100/22 litres for SR 300/SK 300,
incl. push-fit feed chute 75 mm, holder for push-fit feed chute, hopper 22 litres and holder for hopper and fixture
