Барабанна мелница TM 500

Барабанна мелница TM 500

МОжете да поискате безплатна необвързваща оферта на тази страница.

Моля изберете продуктите, които искате да включите в запитването ви. Можете да избирате продукти от всички продуктови страници.

Листа с вашето запитване ще бъде видим в горния десен ъгъл на уеб страницата.

General Inquiry

Not sure which items you need or you prefer a general quote?

Send us a general inquiry

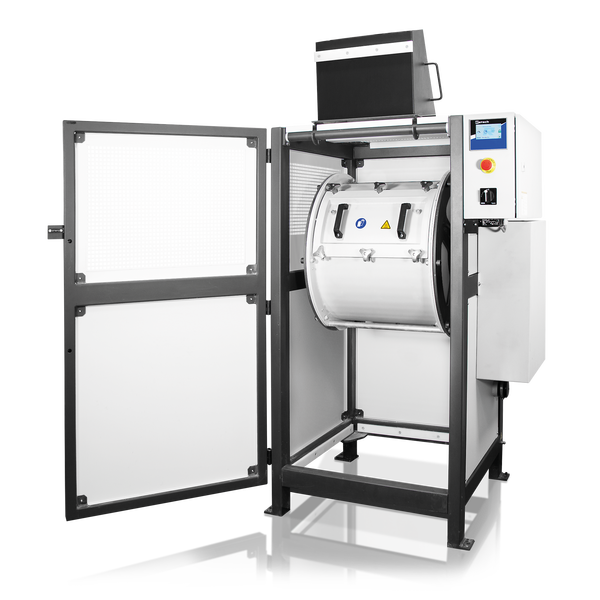

Drum Mill TM 500

Drum Mill TM 500 incl. drum 150 l with cover and fastening aid, base frame and feed hopper
(please order ball filling and optional separation unit separately)
Drum 150 lFeed hopper
21.403.1001
TM 5001/N~ 200-240 V, 50/60 Hzsteel 1.0037steel 1.0037
21.403.1002
TM 5001/N~ 200-240 V, 50/60 Hzsteel 1.4301steel 1.0037
21.403.1003
TM 5001/N~ 200-240 V, 50/60 Hzsteel 316L, foodG.steel 1.0037
21.402.1001
TM 5001/N~ 200-240 V, 50/60 Hzsteel 316L, foodG.steel 316L, foodGrade
other electrical versions available for the same price


Accessories TM 500

Ball fillings

23.455.0031Ball filling 30 mm Ø, steel 1.3505
23.455.0030Ball filling 20 mm Ø, steel 1.3505
23.455.0029Ball filling 10 mm Ø, steel 1.3505
23.455.0034Ball filling 30 mm Ø, steel 1.4404, foodGrade
23.455.0033Ball filling 20 mm Ø, steel 1.4404, foodGrade
23.455.0032Ball filling 10 mm Ø, steel 1.4404, foodGrade


Separation unit for grinding balls/sample
(please order 3 separation grids - upper, middle, lower - separately)

02.407.0148Separation unit incl. 4 collecting receptacles with carriage
03.407.0149Upper separation grid, 22 mm for 30 mm Ø balls
03.407.0152Upper separation grid, 14 mm for 20 mm Ø balls
03.407.0155Upper separation grid, 6.5 mm for 10 mm Ø balls
03.407.0150Middle separation grid, 22 mm for 30 mm Ø balls
03.407.0153Middle separation grid, 14 mm for 20 mm Ø balls
03.407.0156Middle separation grid, 6.5 mm for 10 mm Ø balls
03.407.0151Lower separation grid, 22 mm for 30 mm Ø balls
03.407.0154Lower separation grid, 14 mm for 20 mm Ø balls
03.407.0157Lower separation grid, 6.5 mm for 10 mm Ø balls


Drum 150 l incl. cover and fastening aid

23.462.0052Drum 150 l, steel 1.0037
23.462.0053Drum 150 l, steel 1.4301
23.462.0051Drum 150 l, steel 316L, foodGrade


Additional items TM 500

01.107.0704Cover for drum, steel 1.0037
01.107.0712Cover for drum, steel 1.4301
01.107.0703Cover for drum, steel 316L, foodGrade

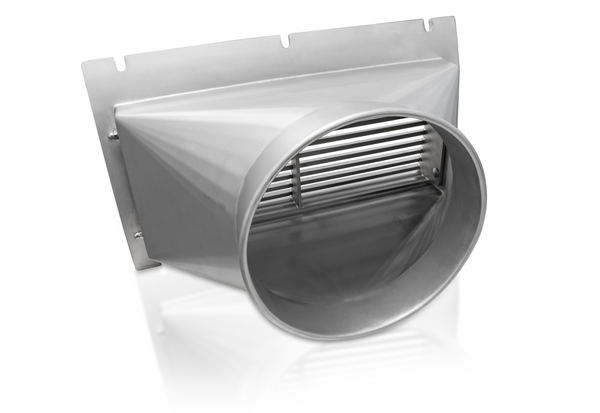

23.785.0026Feed hopper, steel 1.0037
23.785.0025Feed hopper, steel 316L, foodGrade
02.785.0211Feed hopper, with separating grid
05.045.0071Collecting receptacle, 83.8 l for separation unit
05.045.0073Collecting receptacle, 43.5 l for separation unit
23.906.0002Carriage, for collecting receptacle
23.728.0001Fastening aid for drum cover
