Криогенна мелница

Криогенна мелница

МОжете да поискате безплатна необвързваща оферта на тази страница.

Моля изберете продуктите, които искате да включите в запитването ви. Можете да избирате продукти от всички продуктови страници.

Листа с вашето запитване ще бъде видим в горния десен ъгъл на уеб страницата.

General Inquiry

Not sure which items you need or you prefer a general quote?

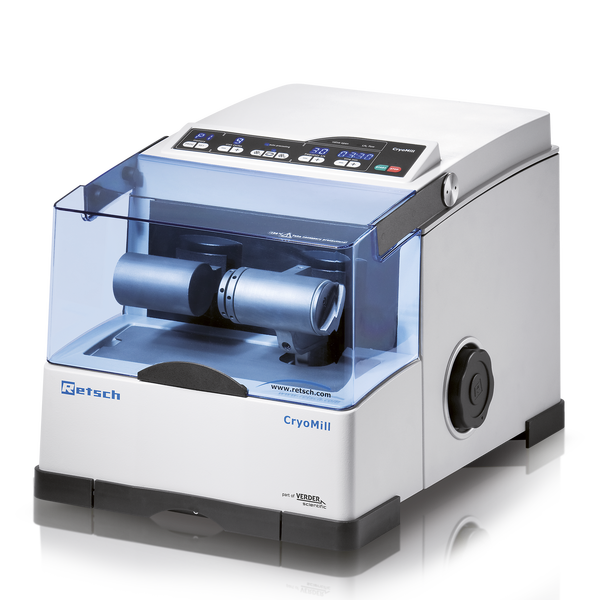

CryoMill

(please order Autofill with LN2 container and safety valve, grinding jars and balls separately)
20.749.0001CryoMill, 100–240 V, 50/60 Hz


Grinding jars CryoMill

Selection help
Selection help
Screw-top grinding jars are dust and air-tight which makes them suitable for dry, wet, and cryogenic grinding. Moreover, they safely enclose the inert atmosphere after being filled in a glove box. Choose a grinding jar size between 5 ml and 50 ml which is suitable for the sample volume to be processed (approx. 30% of the jar should be filled with sample material).

The document „Grinding jar ball charge“ provides details about the usable volume of the grinding jars, maximum feed size and correct filling with grinding balls for dry and wet grinding, as well as for cell disruption.

To ensure efficient grinding, the grinding jars are available in 4 different materials for contamination-free grinding processes (no undesired abrasion).

Available materials:

  • Hardened steel (density 7.6 g/cm3; hardness ≤ 250 HB, medium abrasion resistance)
    typically used for pulverizing medium-hard to hard and brittle samples.

  • Stainless steel (density 7.7 g/cm3; hardness ≤ 265 HB, medium abrasion resistance)
    typically used for pulverizing medium-hard to hard and brittle samples.

  • Zirconium oxide (density 6.05 g/cm3; hardness 1250 HV, high abrasion resistance)
    ceramic material suitable for pulverizing medium-hard to hard and fibrous samples. It is typically used for heavy-metal-free grinding processes or applications which aim at ultrafine particle sizes.

  • PTFE (density 2.1 g/cm3; shore hardness ≥ 54, low abrasion resistance)
    suitable for pulverizing soft to medium-hard sample materials, if the subsequent analysis measures the heavy metal content of the sample, and zirconium oxide abrasion is not acceptable.
Please note:

The grinding tool material should be harder than the sample. For further information check the “Material Analyses of Equipment & Accessories” document in the Downloads section.


Hardened steel

01.462.03005 ml, to be used with adapter 02.706.0304
01.462.033025 ml
01.462.032935 ml
01.462.032850 ml


Stainless steel

01.462.02905 ml, to be used with adapter 02.706.0304
01.462.033110 ml
01.462.033425 ml
01.462.033335 ml
01.462.033250 ml


Zirconium oxide

01.462.033625 ml


PTFE

01.462.033525 ml


Accessories CryoMill

02.480.0003
Autofill 150 l (recommended), incl. connection tube and safety valve
02.480.0002
Autofill 50 l, incl. connection tube and safety valve

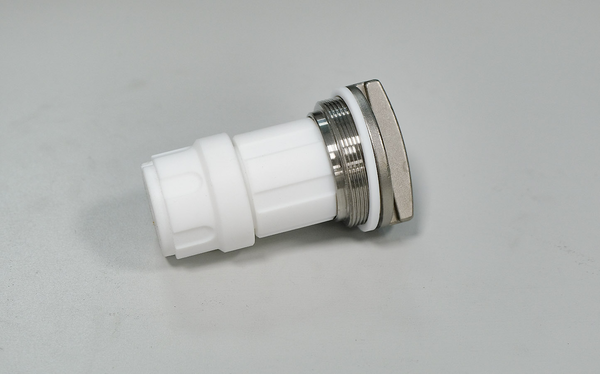

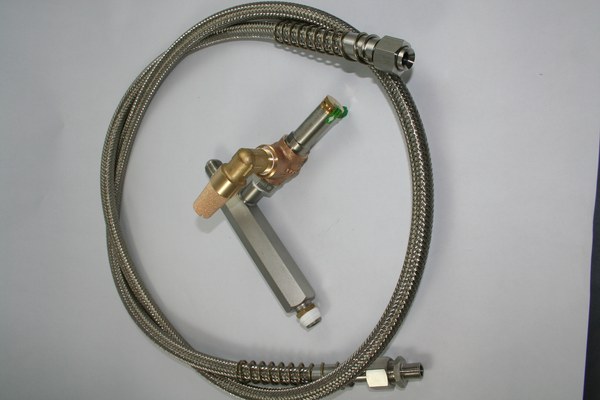

05.871.0001Connection tube, incl. safety valve (for LN2 supply provided by customer)

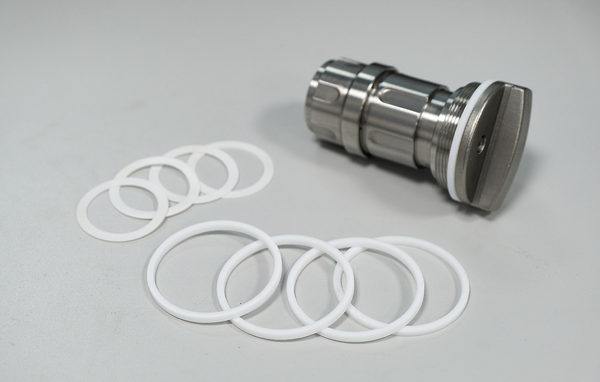

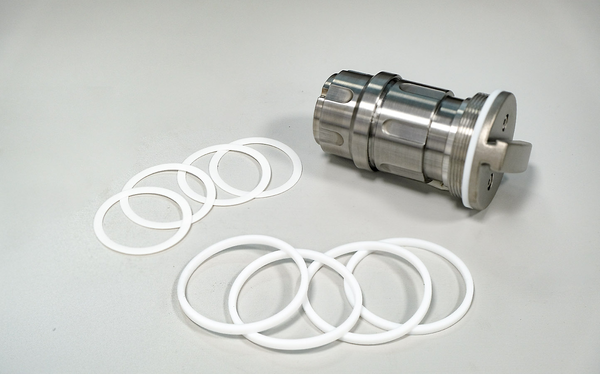

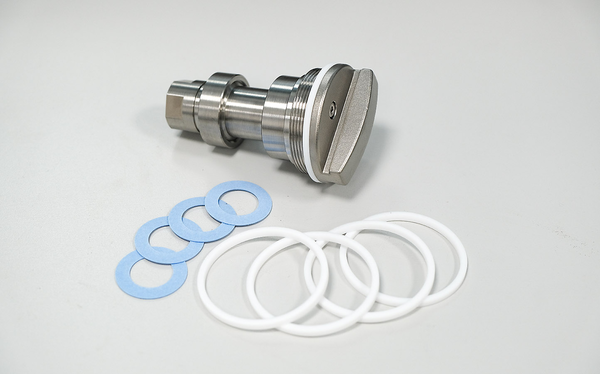

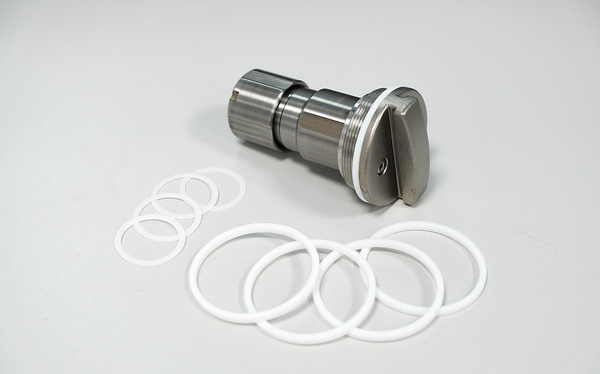

02.706.0304Adapter for use of 2/4 grinding jars, 5 ml

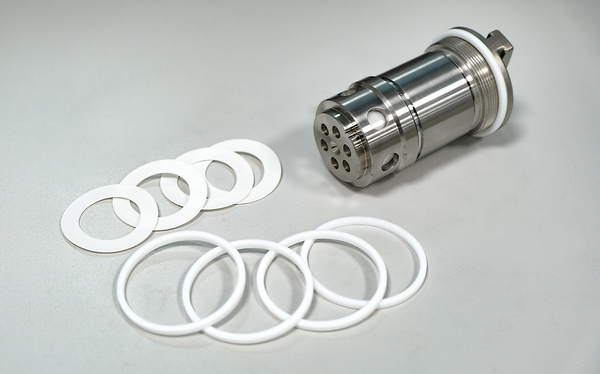

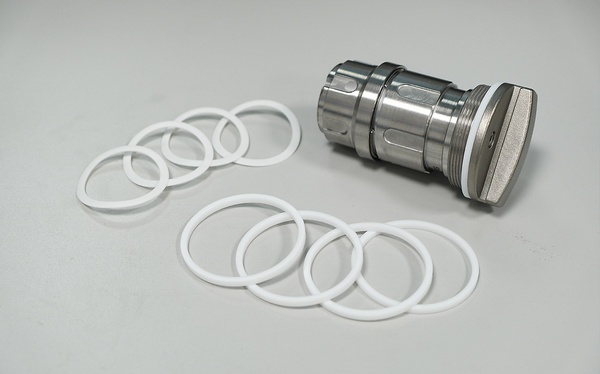

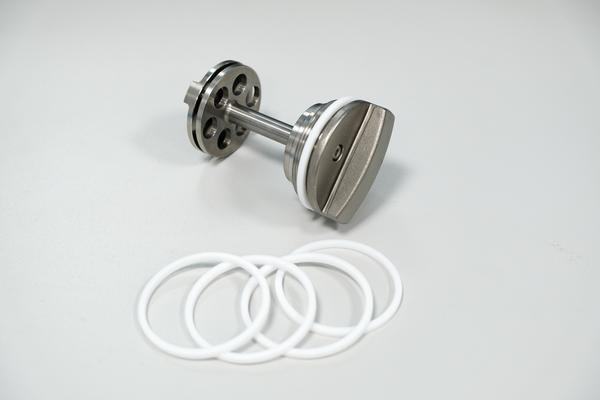

02.706.0303Adapter for use of 2/4/6 reaction vials, 2 ml PTFE

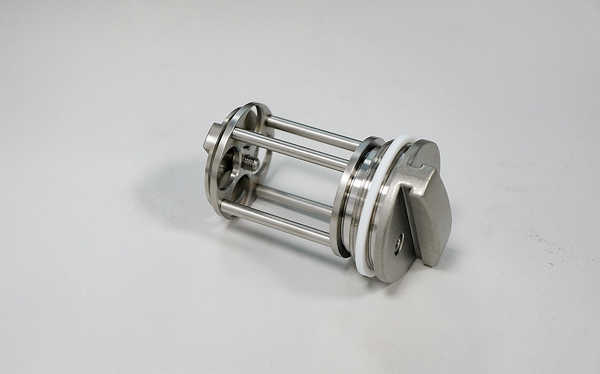

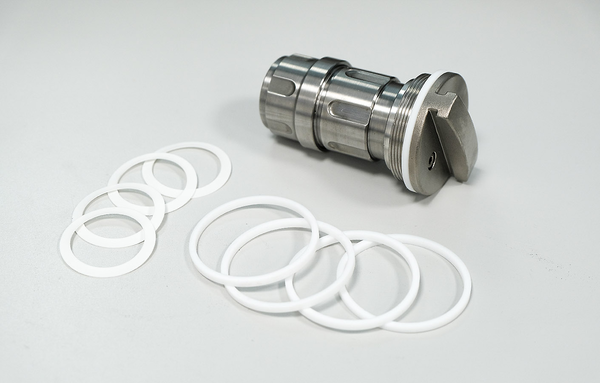

02.706.0360Adapter for use of 2/4/6 reaction vials, 2 ml stainless steel tubes
22.749.0001Safe-lock reaction vials 2 ml, 1000 pcs.

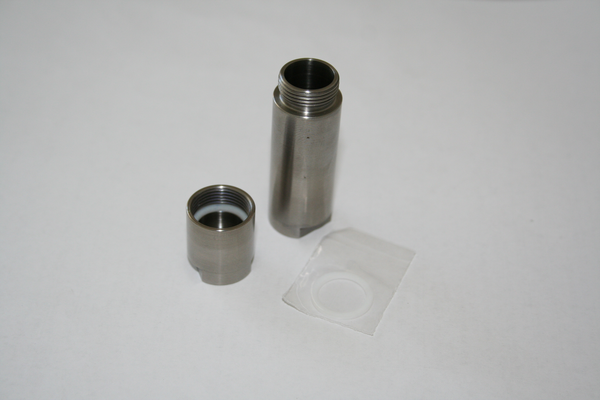

22.749.0008Reaction vials made of stainless steel 316L, 2.0 ml, 10 pcs.
99.200.0016IQ/OQ Documentation for CryoMill

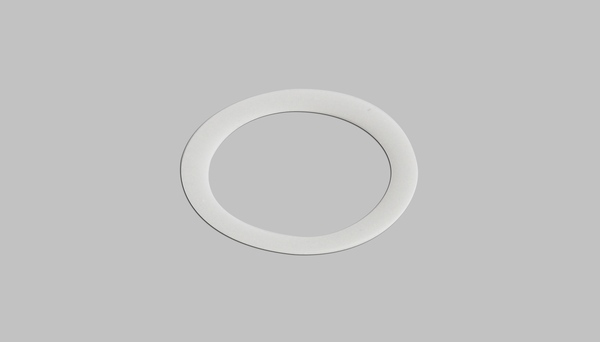

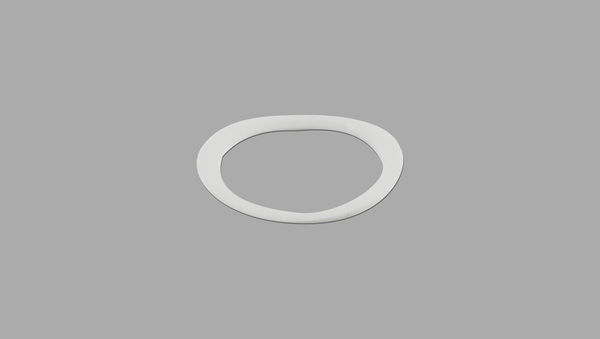

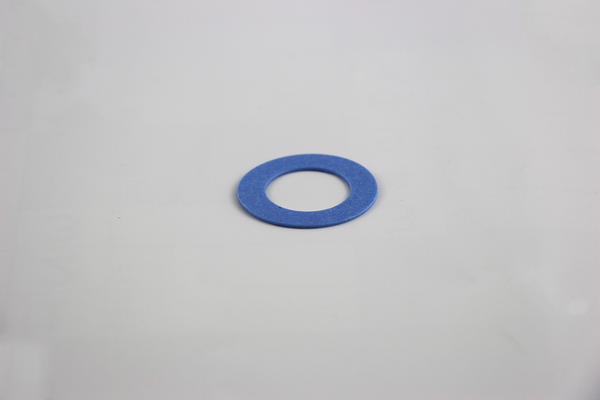

03.111.0262Gasket for grinding jar 5 ml, 10 pieces
03.111.0313Gasket for grinding jar 10 ml, 10 pieces
03.111.0291Gasket for grinding jar 25 ml, hardened steel or stainless steel, 10 pieces
03.111.0296Gasket for grinding jar 25 ml, zirconium oxide, 10 pieces
03.111.0290Gasket for grinding jar 35 ml, 10 pieces
03.111.0289Gasket for grinding jar 50 ml, 10 pieces


Grinding balls

Selection help
Selection help
Grinding balls are available in different diameters. The following rule of thumb applies: for an efficient grinding process, the grinding ball should be at least 3 times bigger than the largest particle. To reduce abrasion and wear, the grinding balls used in a grinding process should all have the same diameter.

The document „Grinding jar ball charge“ provides details about the usable volume of the grinding jars, maximum feed size and correct filling with grinding balls for dry and wet grinding, as well as for cell disruption.

Grinding jars and grinding balls should always be made of the same material.

Available materials:

  • Hardened steel (density 7.8 g/cm2; hardness ≤ 235 HB, medium abrasion resistance)
    typically used for pulverizing medium-hard to hard and brittle samples.

  • Stainless steel (density 7.7 g/cm2; hardness ≤ 245 HB, medium abrasion resistance)
    typically used for pulverizing medium-hard to hard and brittle samples.

  • Zirconium oxide (density 6.05 g/cm2; hardness 1250 HV, high abrasion resistance)
    ceramic material suitable for pulverizing medium-hard to hard and fibrous samples. It is typically used for heavy-metal-free grinding processes or applications which aim at ultrafine particle sizes.

  • PTFE (density 2.1 g/cm2; Shore hardness D56, low abrasion resistance)
    suitable for pulverizing soft to medium-hard sample materials, if the subsequent analysis measures the heavy metal content of the sample, and zirconium oxide abrasion is not acceptable.
Please note:

The grinding tool material should be harder than the sample. For further information check the “Material Analyses of Equipment & Accessories” document in the Downloads section.


Hardened steel

05.368.00295 mm Ø
05.368.00307 mm Ø
05.368.005910 mm Ø
05.368.003212 mm Ø
05.368.010815 mm Ø


Stainless steel

05.368.00345 mm Ø
05.368.00357 mm Ø
05.368.006310 mm Ø
05.368.003712 mm Ø
05.368.010915 mm Ø
05.368.006220 mm Ø
05.368.010525 mm Ø


Zirconium oxide

05.368.01467 mm Ø
05.368.009410 mm Ø
05.368.009612 mm Ø
05.368.011315 mm Ø


PTFE with steel core

05.368.004510 mm Ø
05.368.004612 mm Ø
05.368.011415 mm Ø
05.368.004720 mm Ø
